Electric Vehicle CADing

Inspired by the great work of other fantastic electric vehicle makers I have started working on my first electric vehicle.

With the help of Solidworks I have started creating some CAD models of want the cart will look like.

This one is my favorite

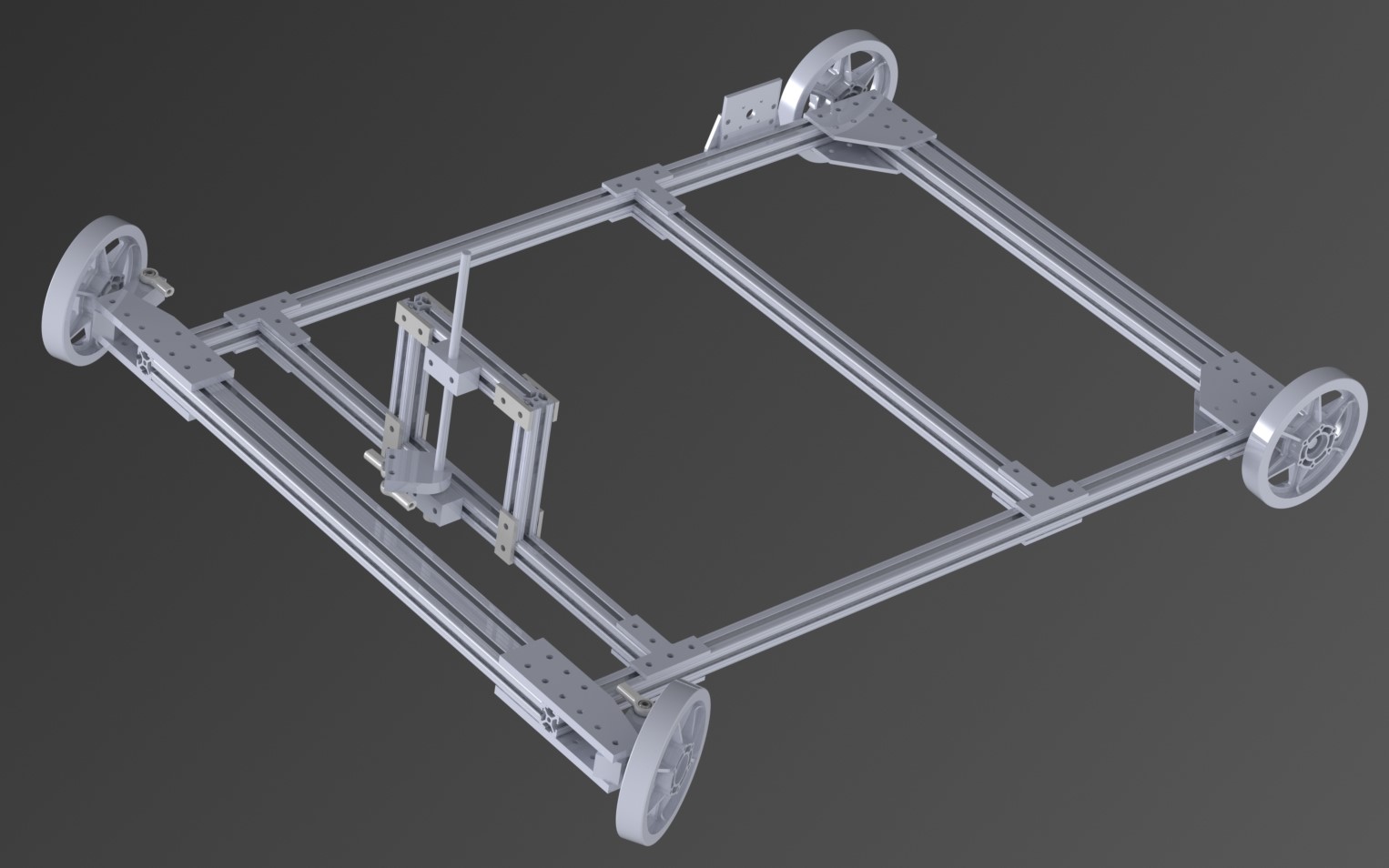

FinalRender2

Some of the early renders

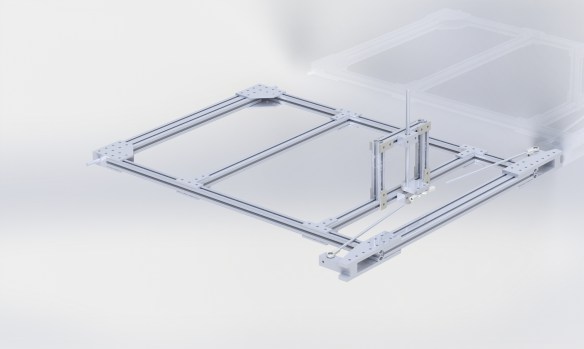

ECCAD1

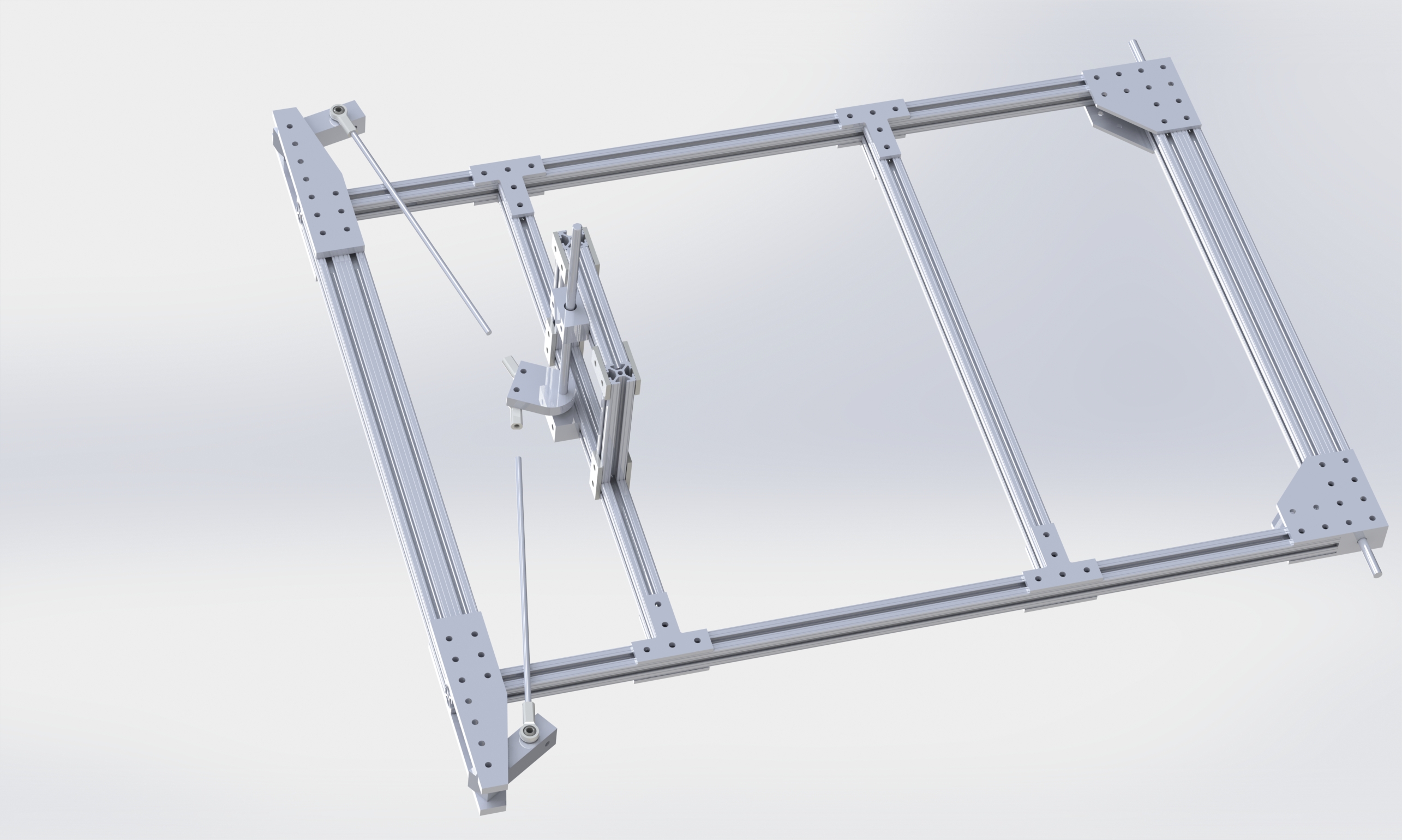

EVCAD2

And towards the end of the design:

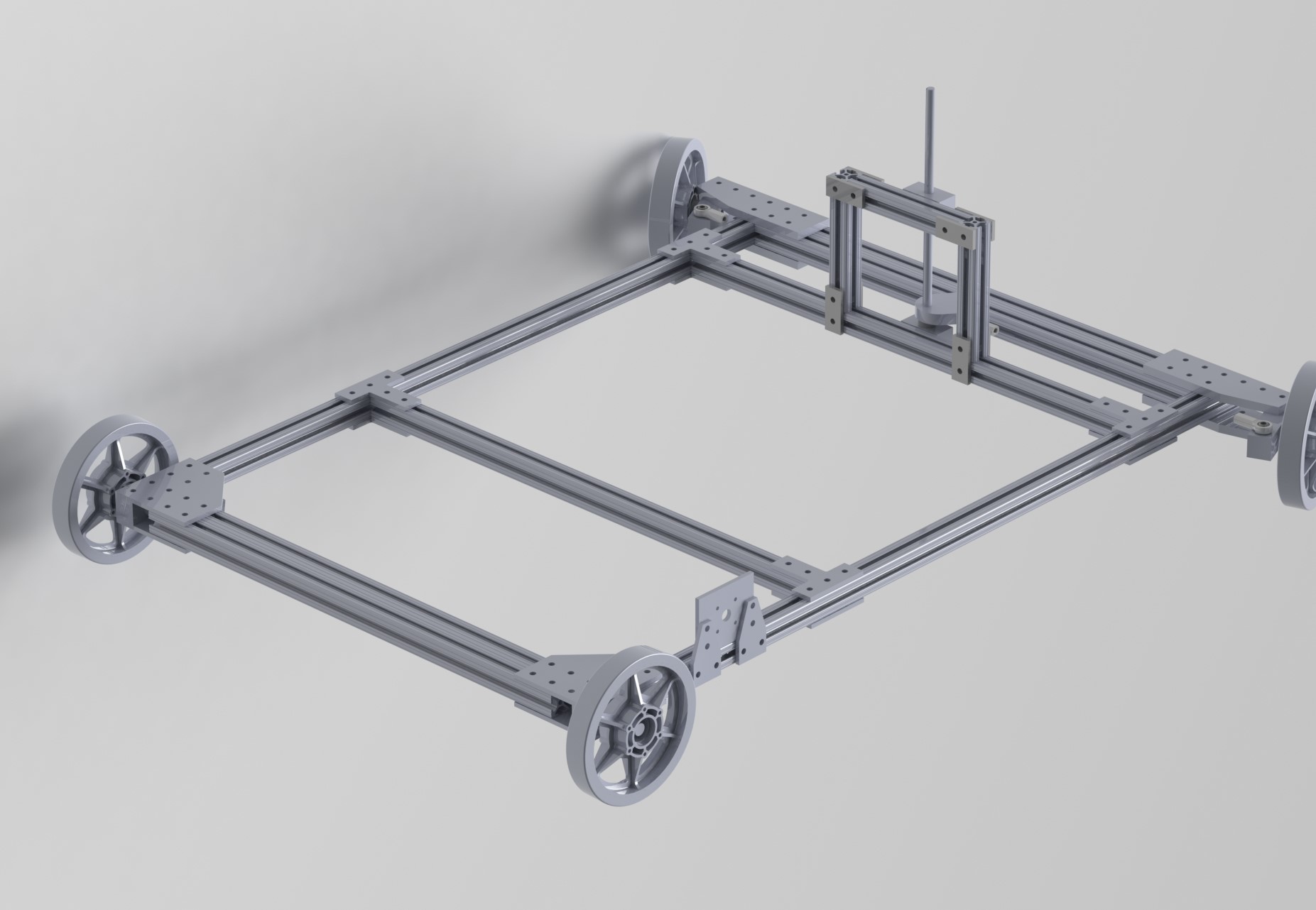

RenderFinal1

The frame is going to be built largely out of 80/20 and the plates are cut out of 3/16″ sheets of aluminum with a water jet.

The general specs right now are:

  • 8s2p 20C Turnigy LiPo pack
  • 2x Turnigy 5065-236k Outrunners
  • 2x 24V 500W Brushless E-bike & Scooter ControllerWith Hall
  • 6″ FIRST Wheels – still working on gear ratio

Stay tuned for further details
