3D Printed Trainer Repair

A while back I got this magnetic bike trainer (I don’t recommend it because it is pretty loud), but otherwise worked fine.

Until of course it broke. What happened was that there is a single bolt going through the resistance fan into the center of the roller that is engaged when your bike wheel is turning it. The makers of the trainer had not bothered to used any sort of Loctite/glue to keep the bolt from coming loose which of course it did. When the bolt came out it bounced around the “cage” that the fan is housed in and broke one of the fins.

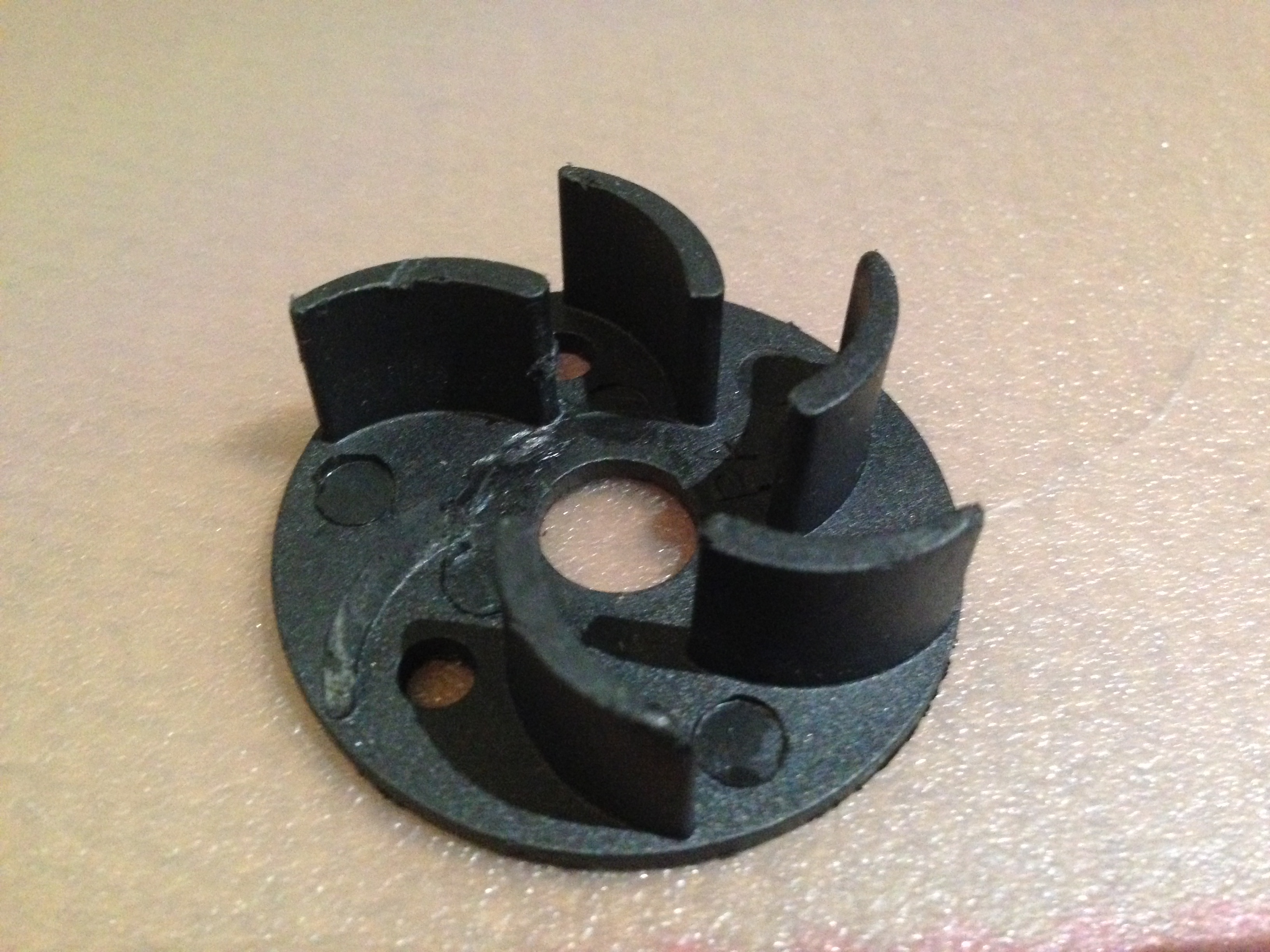

IMG_1162 With no bolt to hold everything down the fan and an attached piece of metal came loose and started rubbing against the magnets on every rotation creating a horrible shrieking noise.

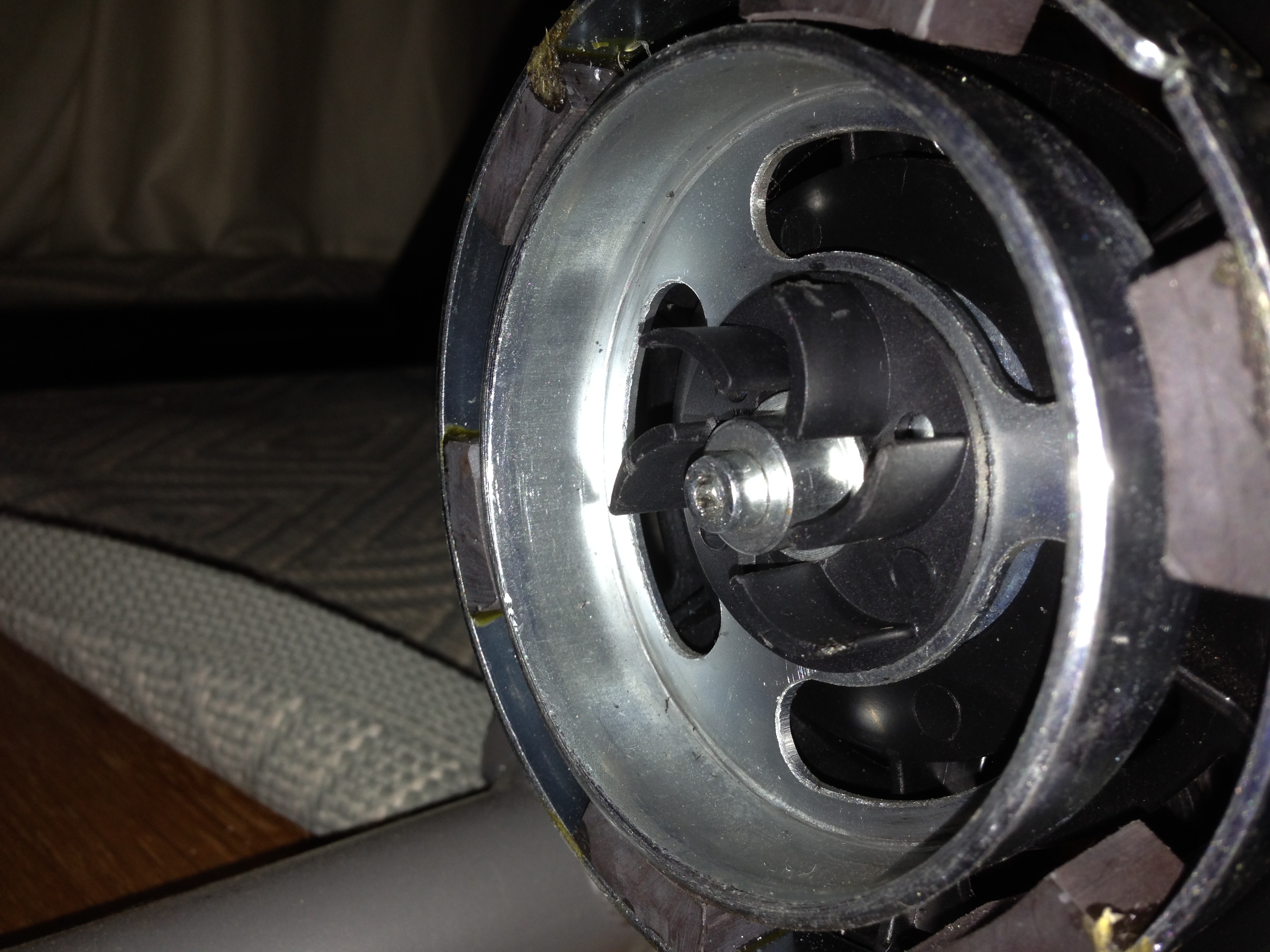

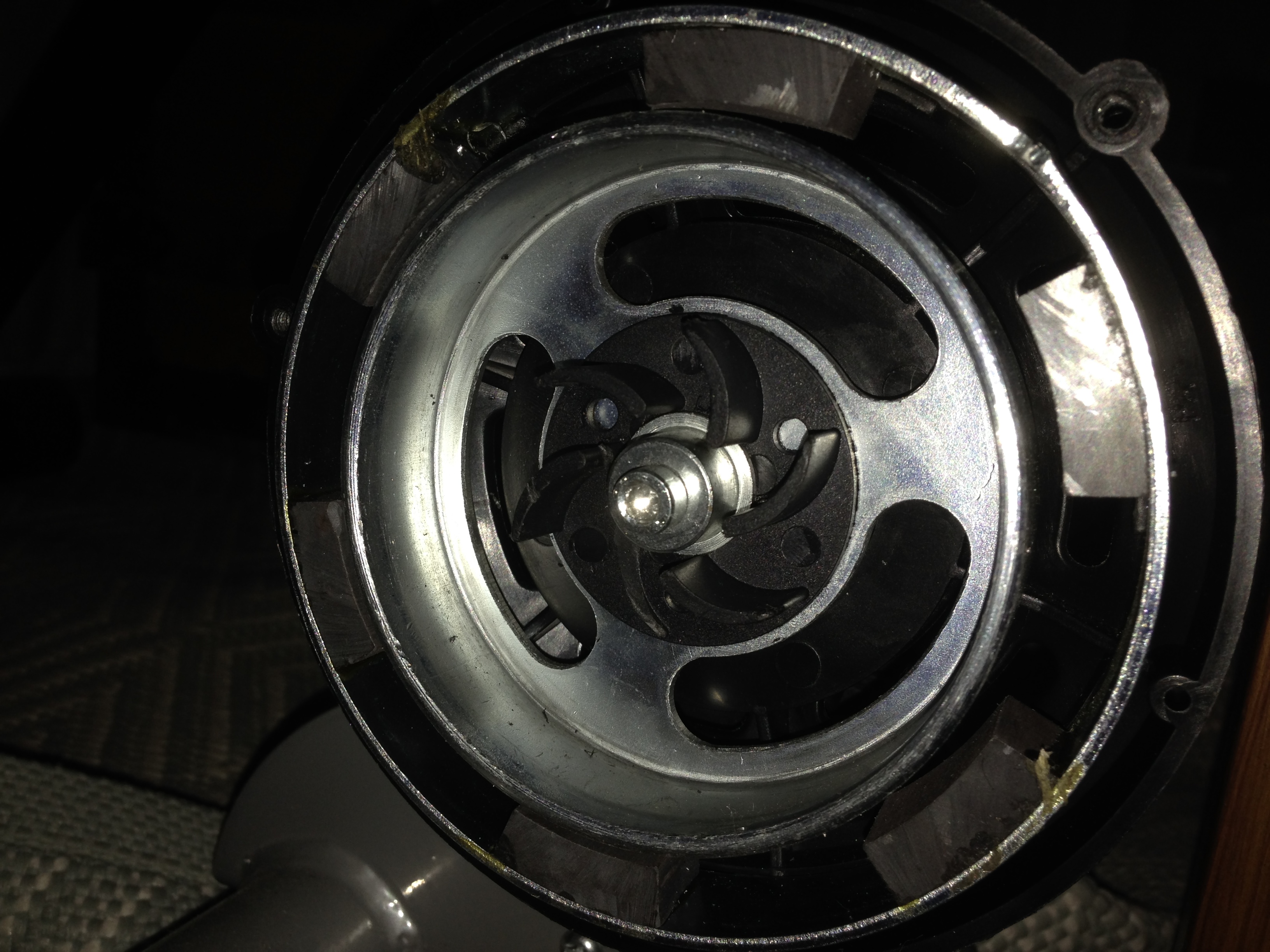

This is what the trainer looks like on the inside when everything is properly connected. The bottom left fin on the fan is missing:

IMG_1164 image-5

I opened it up and pulled out the offending bolt and fan. It turns out that the fan is just a little piece of injection molded plastic and since that was the only damaged part of the trainer it seemed like a pretty easy thing to fix.

With a little dimensioning later I created a model in Solidworks and sent the model off to a 3D printer.

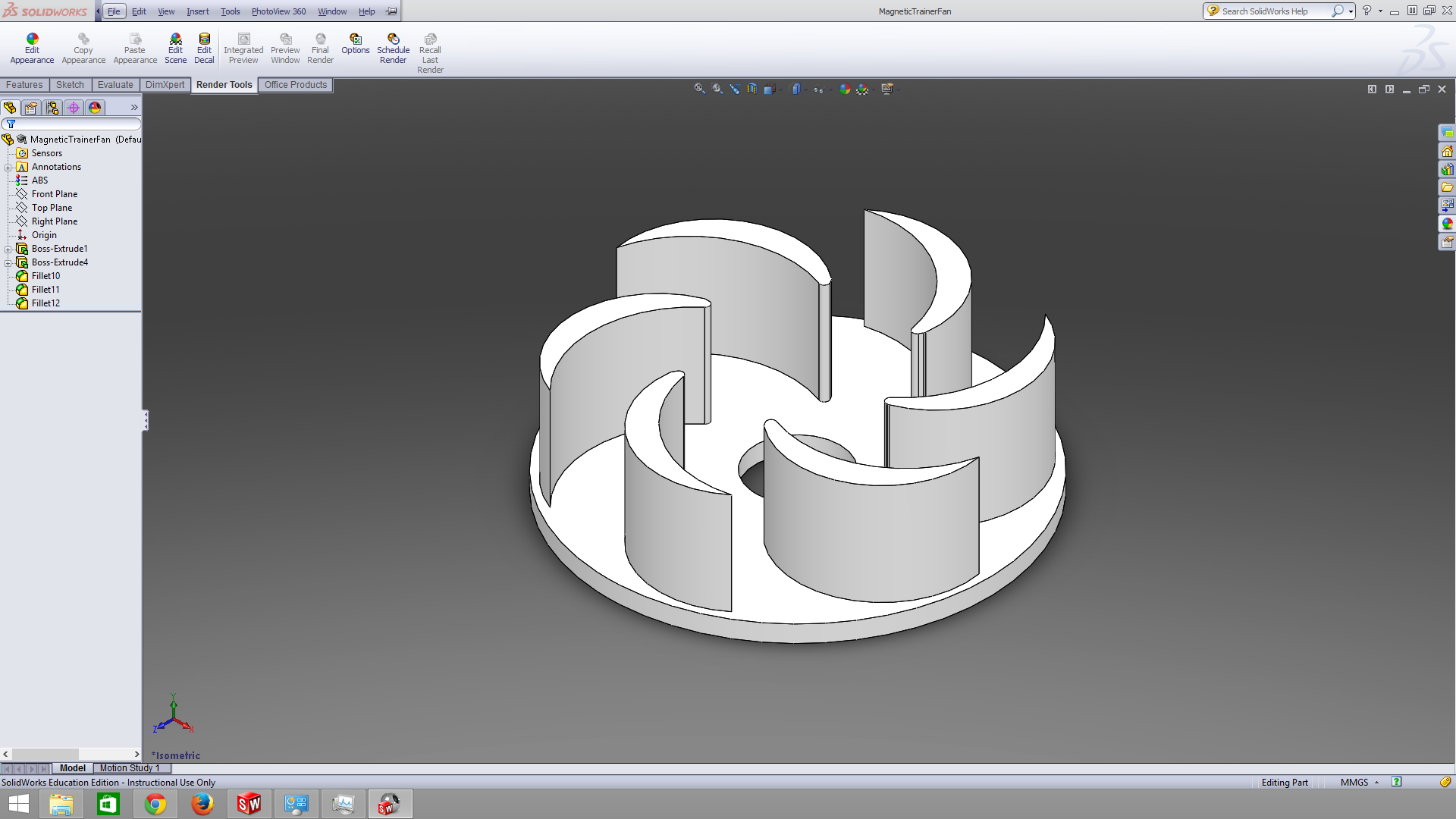

ScreenShot1

RenderISO_2

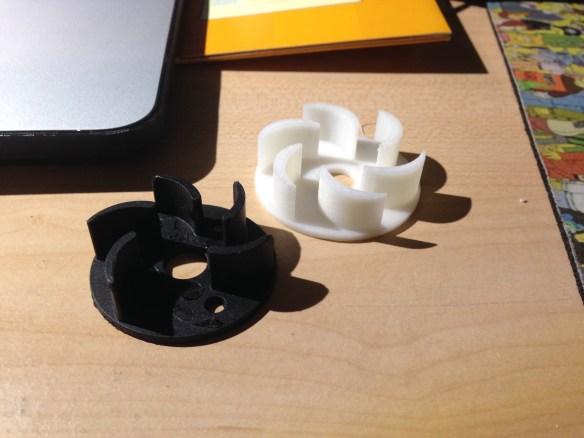

A few hours later I got a pretty close replica. I made the model bigger than the original so it would provide greater resistance.

IMG_117430 seconds later I had everything bolted up again – using Loctite on the bolt – and gave the trainer a test and everything worked perfectly. Of course, now, though, the weather is so nice out I won’t be using the trainer for a very long time…

IMG_1175
